fix(mobile): keep QuickAdd dialogs above the on-screen keyboard

[chhoumann]

Summary

On a phone the on-screen keyboard covered the lower part of QuickAdd dialogs (#2132): the date prompt's Ok, the multi-select's Cancel and Done, and in the macro builder the field being typed in, under the pinned footer. Obsidian keeps a modal centered on the whole screen and lays the keyboard over it.

• .is-phone .modal-container.quickAddModal ends at the keyboard (bottom: var(--keyboard-height)) and redefines --dialog-max-height with core's phone formula minus the keyboard, so a dialog sits in the space above it. A top padding of min(--keyboard-height, top inset) keeps it under the status bar only while the keyboard is up.
• The pinned footer (one-page form, builders) no longer pads itself by the keyboard height, which Obsidian puts into --safe-area-inset-bottom while the keyboard is up.
• A text or date prompt's action row is sticky at the bottom of its scroll area, so Ok stays visible when the prompt is taller than that space.
• Obsidian's own keyboard scroll measures the document selection, which for an <input> is not the field. Once the keyboard is up (keyboardDidShow), QuickAdd scrolls the focused field in a QuickAdd dialog back into view.

With the keyboard down every dialog and button is where it was: measured on the phone, the modal and button rects of the text prompt, date prompt, multi-select and one-page form are identical to dd59057.

An earlier try that padded each dialog by the keyboard height also kept the buttons visible, but the dialog then stretched down to the keyboard and the tall date prompt scrolled its input out of view, so it was dropped.

Before / after (iPhone, iOS 18.7, Obsidian 1.14.3)

Before	After

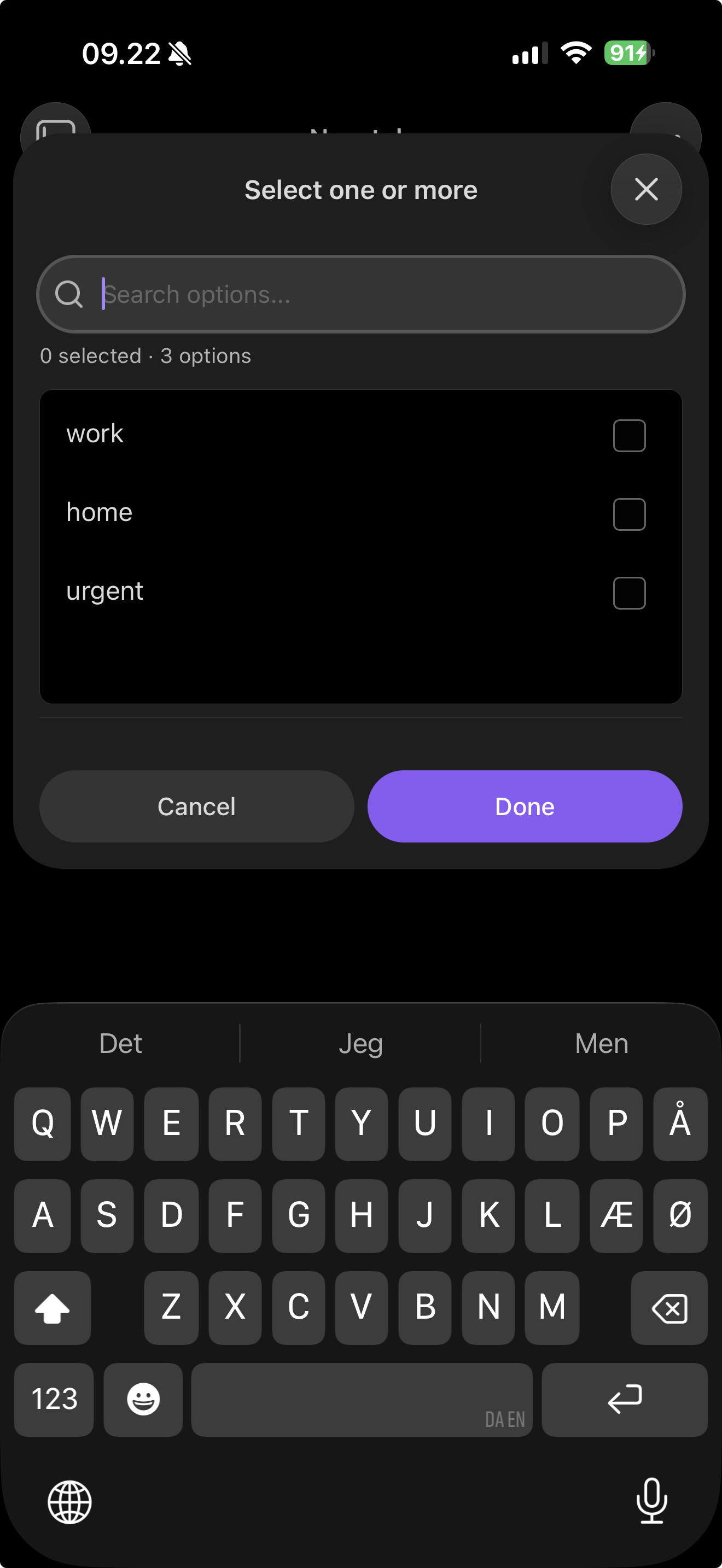

Multi-select: Cancel/Done at y 642-686 under a keyboard starting at 592

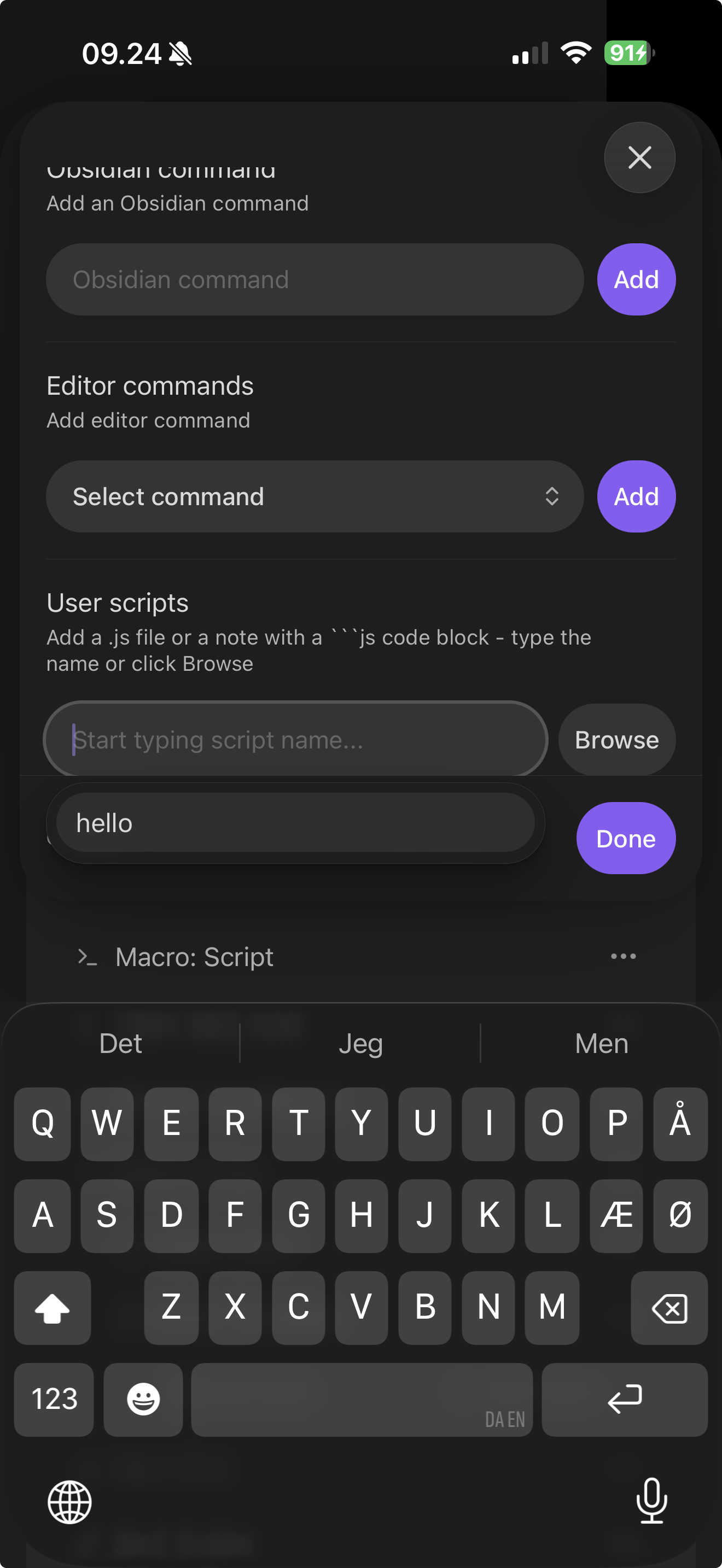

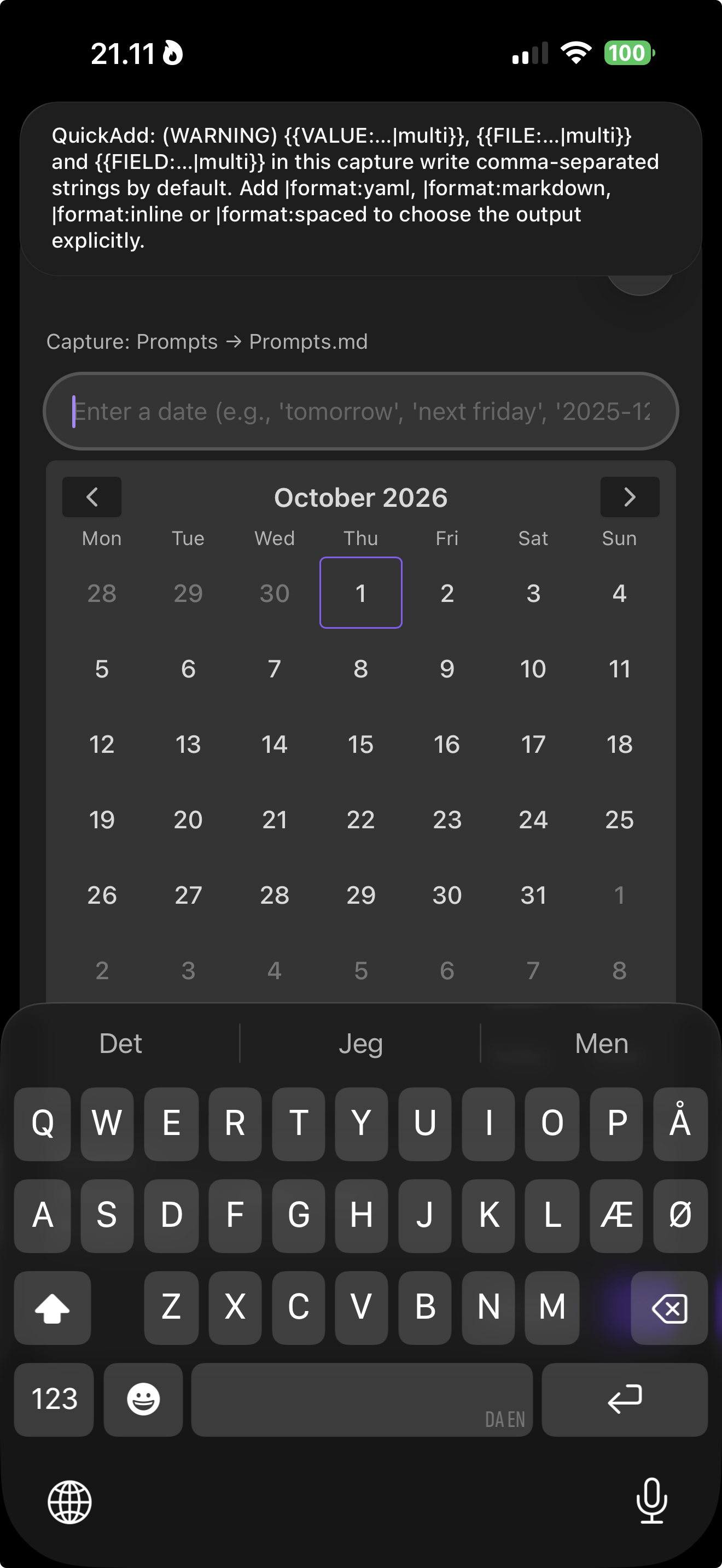

(The "after" screenshots are from the same CSS and listener injected into the 2.30 candidate on the phone; the built PR was then deployed to the phone and measured with the real keyboard: date input 150-194 and Ok 559-595, multi-select Done 501-545, one-page last field 496-540 above Submit, macro script field 491-535 with the footer starting at 535, keyboard top at 611.)

Testing

• tests/e2e/phone-keyboard.test.ts (desktop Obsidian, phone classes, --keyboard-height: 345px): the date prompt's field and Ok, the multi-select's Done, and the macro builder's script field after keyboardDidShow are above the keyboard. All three fail on master; with only the CSS (no listener) the macro test fails on its last assertion.
• pnpm run test: 6607 passed, 33 skipped.
• pnpm run build-with-lint: clean.

Release impact

Phone only. No settings or data change. The issue is older than 2.30 (2.29.0 behaves the same).

Fixes #2132

Summary by CodeRabbit

• Bug Fixes
  • On phones, QuickAdd modals now stay visible above the on-screen keyboard, with focused fields and key actions kept in view.
• Tests
  • Added coverage for keyboard behavior in date prompts, multi-select prompts, and the macro builder.

Note

Fix QuickAdd mobile dialogs being hidden by the on-screen keyboard

Keeps QuickAdd modal inputs and action buttons visible when the mobile keyboard opens.

• Adds keepFocusedFieldInView, which listens for the keyboard-shown event and scrolls the focused field inside a QuickAdd modal into view; wired up in main.ts during plugin load.
• Reworks phone modal layout in styles.css: modal containers are capped to the viewport above the keyboard, footers subtract keyboard height from their padding, prompt action controls are sticky while content scrolls, and the searchable multi-select dialog honors the phone height cap.
• Adds E2E tests in phone-keyboard.test.ts covering date prompts, multi-selects, and the macro builder under a simulated phone keyboard.
• Behavioral Change: phone footer padding and modal sizing now depend on the --keyboard-height custom property; modals reposition above the keyboard instead of sitting under it.
