fix: keep design system select after template selection, fix some e2es

[sidmohanty11]

Design systems

• Fixed "No design system" not sticking — picking it was read as "nothing chosen yet", so the picker snapped straight back to your default or the first usable system, and generations kept using it.
• Fixed the design system picker disappearing after you apply a template — it was tied to the empty-design start row, so filling the design took the control away with it.

Canvas

• Fixed the canvas flipping to white the moment you draw your first shape — Chrome paints an opaque base behind an iframe whose colour scheme disagrees with the editor's, so the transparent board document composited over white instead of the canvas.
• Fixed the canvas colour going stale — the board layer snapshotted the theme variable into JS during render; it now reads the live variable, so there's one canvas colour instead of two that could disagree.
• Fixed the Canvas swatch reading NONE — it was fed the stored value, so an unset canvas looked like "no colour"; it now shows the colour the canvas is actually painted with.
• Fixed text drawn on the canvas always being white, unreadable on a light canvas — it now takes its colour from the surface it lands on.

Designs list

• Fixed the "…" menu being invisible in light mode — a fixed dark chip with a theme-following icon; it's now one scrim that reads on any thumbnail, matching the checkbox beside it.
• Fixed the grid stranding a single card on the last row — the New Design card shares the grid, so a full page was 13 tiles.

Templates page

• Fixed "template" being repeated everywhere — dropped the page title that duplicated the nav item, its description, and the section description.

CI e2e suite

• Fixed a real race in the primitive-drawing test — it read the server file immediately after drawing, before autosave landed; the wait now lives in the helper.
• Fixed a font-metric-dependent auto-layout drag — the drop point sat 12px past a button's edge, which escaped the row on Linux and reordered out of it.
• Fixed a sidebar test asserting a pixel width that really measured whether the seed design had persisted frame geometry.

[github-actions]

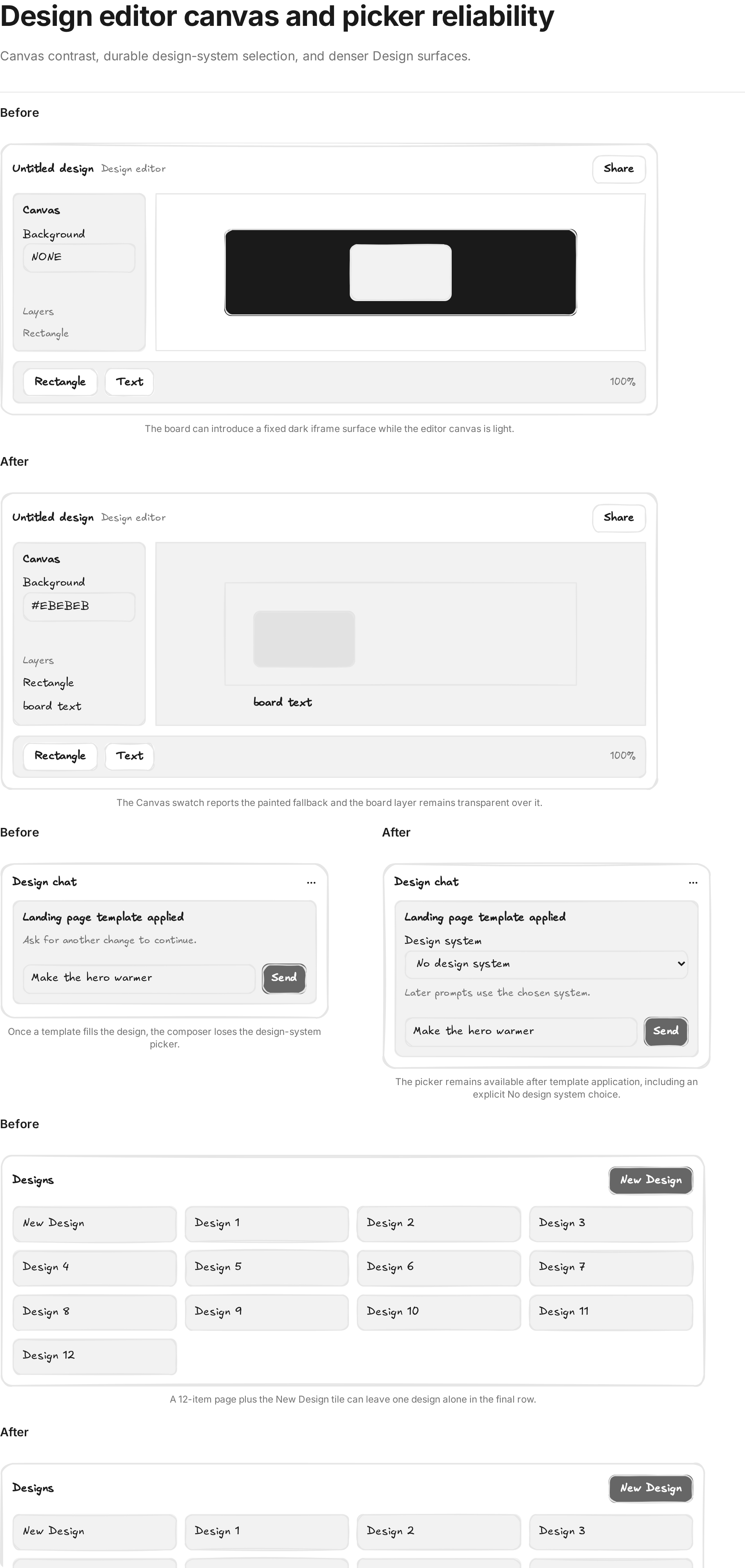

Here's a visual recap of what changed:

Open the full interactive recap

[builder-io-integration]

Builder reviewed your changes and found 2 potential issues 🟡

Review Details

Incremental Code Review Summary

The latest PR head addresses both previously open canvas findings: direct board text insertion now ignores the unpainted board document body, and board render styling replaces stale scheme-specific injected CSS instead of trusting the marker alone. I resolved both prior review threads after verifying those fixes in the diff.

The design-system picker fix also correctly preserves an explicit null while the composer is open. However, the latest changes expose two new state/layout regressions. The design-list page size is reduced globally even though the extra New Design tile only appears on the first page, and the composer still clears its local selection when the prompt closes, so the explicit no-system choice does not survive reopening.

Key Findings

• 🟡 MEDIUM — Pages after the first now fetch/render 11 cards without the extra New Design tile, leaving an incomplete final row and contradicting the grid-filling behavior.
• 🟡 MEDIUM — Closing the composer resets the explicit no-design-system choice, so reopening it can resolve the workspace default again.

Three parallel code-review agents found no security or material performance concerns. Focused unit suites passed in the agent checks. Browser verification was attempted, but Chrome automation tools remain unavailable.

Risk assessment: Standard, because the changes affect editor UI state, rendering, pagination, and tests.

🧪 Browser testing: Attempted after review but unavailable — no Chrome automation tools were exposed in this session.

[builder-io-integration]

🟡 Keep later design-list pages aligned to the grid

DESIGN_PAGE_SIZE is reduced to 11 so the first page's 11 designs plus the New Design tile make 12 tiles, but that tile is only rendered on the first page. Subsequent pages therefore contain 11 cards and still end with a stranded card in the existing 3- or 4-column grids. Keep later API pages at a grid-aligned size or handle the first-page tile separately without reducing every page.

Additional Info

New issue found by 1 of 3 parallel code-review agents; confirmed against the first-page-only New Design tile behavior.

[builder-io-integration]

🟡 Preserve the explicit no-system choice across composer reopen

The handler now correctly stores null, but closing the prompt still resets promptDesignSystemId to undefined. Reopening the composer therefore re-runs the default resolver when the design has no linked system, so “No design system” only appears to stick until the composer closes. Preserve the intentional no-system state across close/reopen, or distinguish it from an untouched design when restoring the selection.

Additional Info

New issue found by 1 of 3 parallel code-review agents; distinct from the resolved null-to-undefined handler issue.
