MapGenny – Rust Map Generation System

A server-side map generation system for Rust that runs as a Harmony mod with a web-based interface for generating, processing, and customizing maps.

Features

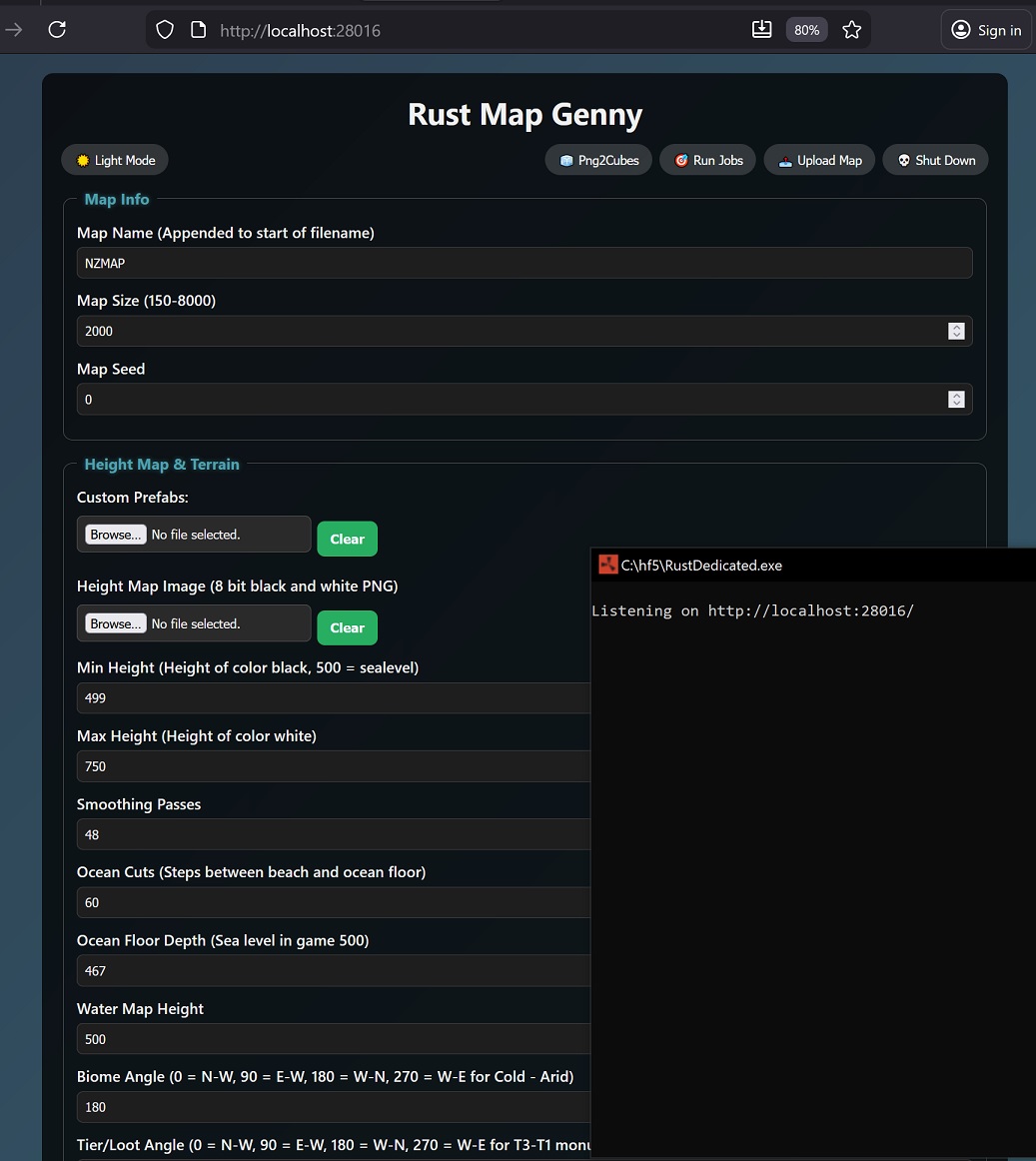

• Web-Based Interface – Intuitive UI for map generation and configuration
• Custom Prefabs – Import and integrate custom prefab templates
• Heightmap Support – Generate terrain from custom heightmaps
• 3D Preview – Visual preview of generated maps
• Prefab Breaker – Advanced prefab manipulation tools
• PNG to Cubes – Convert images to prefab cubes
• Batch Processing – Queue multiple generation jobs via zip uploads

Requirements

Supported Platforms

Operating System	Version
Windows	10 / 11
Ubuntu	22.04
Debian	12

Hardware Requirements

Component	Minimum	Recommended
CPU	2 cores	4+ cores
RAM	4 GB	6 GB+
Storage	20 GB SSD	50 GB SSD

Prerequisites

• Vanilla Rust Dedicated Server

Demo Videos

Installer	Prefab Breaker	PNG2Cube
Custom Prefabs Static Map	Custom Prefabs Monuments	Jobs Mode

Installation

Quick Start (Recommended)

1. Download the installer scripts from the latest release
2. Run the installer for your system:
   • .bat for Windows
   • .sh for Linux
3. Start the server using the run script for your platform

Manual Installation

1. Download MapGenny.dll from bin/Release

2. Place MapGenny.dll in your server's HarmonyMods folder

3. Start your Rust Dedicated Server

Linux Setup

Install required GDI libraries:

sudo apt install -y libgdiplus libc6-dev

Set environment variables before launching:

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$(pwd)
export SYSTEM_DRAWING_ALLOW_SYSTEM_GDI_UNIX=1

Configuration

Server Parameters

Parameter	Description	Required
+server.ip	Server bind address	Yes (remote)
+server.port	Server port	Yes
+rcon.password	RCON password	Yes (security)

Startup Examples

Windows (start.bat):

RustDedicated.exe ^
  +server.ip * ^
  +server.port 28016 ^
  +rcon.password "YourPassWordHere" ^
  -logfile "logs.log"

Linux (start.sh):

#!/bin/sh
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$(pwd)
export SYSTEM_DRAWING_ALLOW_SYSTEM_GDI_UNIX=1
cd "$(dirname "$0")"
./RustDedicated \
  +server.ip 0.0.0.0/+ \
  +server.port 28016 \
  +rcon.password "YourPassWordHere"

Security Note: Always set an RCON password. Without it, anyone can shut down your server.

Optional Parameters

Parameter	Default	Description
+allowuploads	true	Enable/disable file uploads
+allowjobs	true	Enable/disable job queue
+allowcubes	true	Enable/disable png2cubes
+cubesonly	false	Run in cubes-only mode
+allow3d	true	Enable/disable 3D preview
+allowbreakprefab	true	Enable/disable prefab breaker

Network Configuration

• Local Mode: If +server.ip is not specified, MapGenny auto-opens the web interface and enables all functions.
• Remote Mode: If +server.ip and +server.port are specified, MapGenny will run in remote mode. Some features disabled by default.
• Multiple Interfaces: Bind multiple IPs using / (e.g., 127.0.0.1/192.168.0.1)
• Linux Remote: Bind two addresses to open remotely (e.g., 0.0.0.0/+)

Custom Prefabs

To create a custom prefab template:

1. Run the debug version of MapGenny.dll from bin/Debug
2. Generate a map (instead of loading custom prefabs it will save all templates that were found on that map.)

Batch Processing (Jobs Zip)

Zip Structure

ZipFile.zip
└── FolderName
    ├── job.json           (required)
    ├── height.png         (optional)
    └── customprefabs.zip   (optional)

Example

Download example jobs (NZ/Australia maps) for reference.

job.json

• Generated via the "Export JSON" button in the web interface
• Uses active settings from the UI
• Custom heightmaps/prefabs must be in the same folder
• Folder names should avoid spaces

The server processes jobs sequentially until stopped or deleted.

Advertisement Markup

Support for custom text formatting:

Tag	Description
<size=8></size>	Text size (default: 8)
<br>	Line break

License

Copyright (c) bmgjet. All rights reserved.

Grant of License

You are granted a limited, non-exclusive, non-transferable, revocable license to use this software for non-commercial purposes only.

Permitted Use

• Modify and improve the software
• Add features or fix bugs
• Refactor or optimize code

Conditions:

• Original copyright notices must remain intact
• Attribution to bmgjet must be preserved
• Changes should be submitted back

Prohibited Use

• Commercial use or monetization
• Selling, licensing, or renting the software
• Claiming ownership of the original work
• Removing copyright notices

Commercial Licensing

For commercial use, contact bmgjet for:

1. Prior approval
2. Revenue share agreement
3. 20% of gross profits from map and/or resources created by this software.
